Allied Motion's CL family of coreless DC motors maximizes performance via a unique coreless rotor design combined with high strength permanent magnets. CL motors boast virtually zero iron loss, no cogging torque, minimal torque ripple, and low rotor inertia. These...
Allied's EnduraMax™ brushless DC motors are designed for commercial-industrial applications. EnduraMax models are available with or without integrated drive electronics. SeriesFrame SizeLengthMotor VoltageRated Output TorqueRated SpeedRated Output...

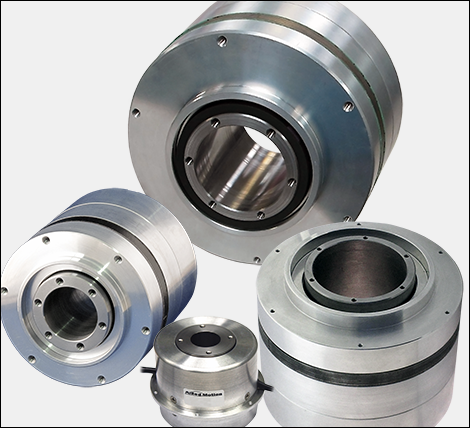

Allied Motion offers housed brushless torque motors ready to mount into your application. These high performance torque motors are available in four series with outer diameters up to 170 mm (6.7 in). The CM series are available with eight different optical encoder...
HT family are high torque density frameless brushless motors offering nine frame diameters and stall torque ranging from 0.008 up to 4.4 Nm (1.13 up to 623 oz-in). HT torque motors offer a clear aperture hollow-shaft of up to 63.5 mm (2.5 in). All frameless HT models...

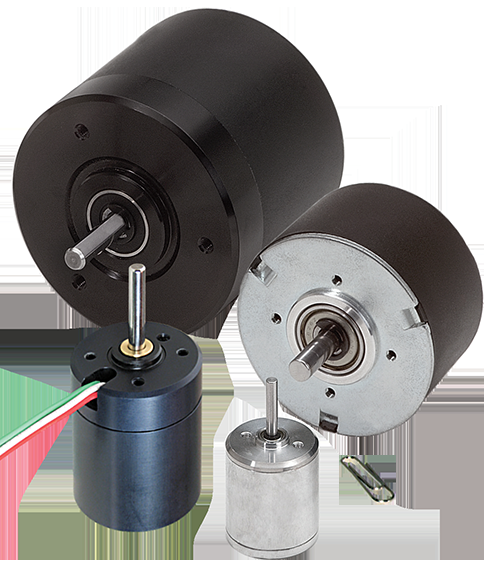

KinetiMax™ Brushless DC Motors Allied Motion's KinetiMax are outer-rotor design brushless DC motors with integral drive electronics. KinetiMax advantages of greater inertia and higher torque inherent in outer-rotor designs minimize cogging torque and maximize...
Allied Motion's Megaflux family of high performance frameless brushless torque motors consists of 12 frame diameters ranging from 60 through 792 mm (2.4 though 31.2 inches) with multiple stack lengths for each diameter, insuring that one of our standard models...
The Micro Rayon Motor Controller is a miniature yet robust motor control solution capable of powering motors up to 450W. It provides advanced digital control for position, speed, and torque, making it an ideal choice for multi-axis robotics and automation systems. With its compact PCB-mount design and user-friendly setup tools, the Micro Rayon ensures precision and efficiency for demanding applications.
Product Specs
Power: Capable of driving motors up to 450W
Current: Continuous current rating of 10 ARMS, peak up to 20 ARMS
Supply Voltage: Recommended operating voltage: 12-48 VDC
Operating Temperature Range: -40°C to +85°C
Size: 30.4mm x 25mm x 9.6mm
Weight: 9-11 grams
Communication and Feedback Options
Communications: RS232, RS422 (CAN optional)
Feedback: Hall sensors, incremental encoders, SSI, and Sin/Cos encoders
Control Modes: Closed-loop control for position, speed, and torque with PID tuning
Download Datasheet
Quantum™ is Allied Motion's family of high torque density brushless servo motors for precision velocity and positioning applications. Frameless Quantum models are designed for direct integration with the driven shaft or gear train. Housed Quantum models conform...
Allied Motion offers our frameless Quantum high torque density brushless servo motors in four standard frame diameters. These motors are designed for direct integration with the driven shaft or gear train. Allied Motion has also designed countless customized Quantum...
Overview Galvanically isolated power stage from 12V to 48VDC. High power Sinusoidal, flux-oriented control. Hall, Digital SSI. Sin Cos (EnDat 2.2) and two Incremental encoders feedback. PID closed loop modes: Position (2khz), speed (4khz), current(20khz) and...
